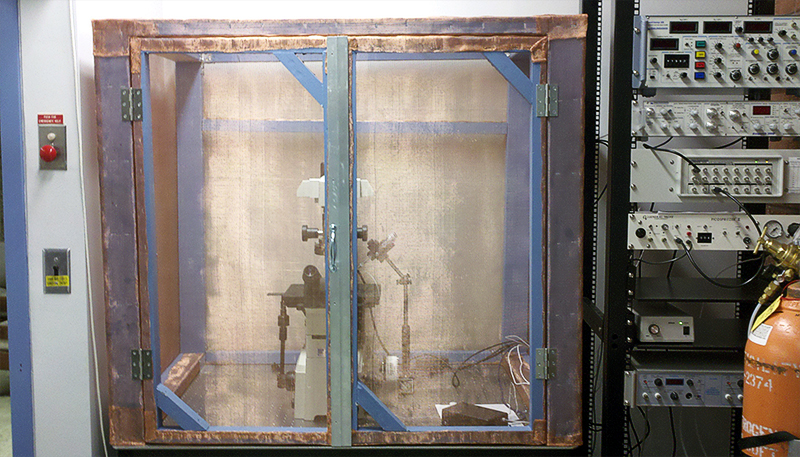

A Faraday cage or Faraday shield is an enclosure formed by conducting material or by a mesh of such material. Such an enclosure blocks external static and non-static electric fields. Faraday cages are named after the English scientist Michael Faraday, who invented them in 1836.[1]


A Faraday cage's operation depends on the fact that an external static electrical field causes the electric charges within the cage's conducting material to be distributed such that they cancel the field's effect in the cage's interior. This phenomenon is used, for example, to protect electronic equipment from lightning strikes and electrostatic discharges.


Faraday cages cannot block static or slowly varying magnetic fields, such as the Earth's magnetic field (a compass will still work inside). To a large degree, though, they shield the interior from external electromagnetic radiation if the conductor is thick enough and any holes are significantly smaller than the wavelength of the radiation. For example, certain computer forensic test procedures of electronic systems that require an environment free of electromagnetic interference can be carried out within a screen room. These rooms are spaces that are completely enclosed by one or more layers of a fine metal mesh or perforated sheet metal. The metal layers are grounded in order to dissipate any electric currents generated from external or internal electromagnetic fields, and thus they block a large amount of the electromagnetic interference. See also electromagnetic shielding.


The reception or transmission of radio waves, a form of electromagnetic radiation, to or from an antenna within a Faraday cage are heavily attenuated or blocked by a Faraday cage.


In 1836, Michael Faraday observed that the charge on a charged conductor resided only on its exterior and had no influence on anything enclosed within it. To demonstrate this fact, he built a room coated with metal foil and allowed high-voltage discharges from an electrostatic generator to strike the outside of the room. He used an electroscope to show that there was no electric charge present on the inside of the room's walls.


Although this cage effect has been attributed to Michael Faraday, it was Benjamin Franklin in 1755 who observed the effect by lowering an uncharged cork ball suspended on a silk thread through an opening in an electrically charged metal can. In his words, "the cork was not attracted to the inside of the can as it would have been to the outside, and though it touched the bottom, yet when drawn out it was not found to be electrified (charged) by that touch, as it would have been by touching the outside. The fact is singular." Franklin had discovered the behavior of what we now refer to as a Faraday cage or shield (based on one of Faraday's famous ice pail experiments which duplicated Franklin's cork and can).[2]


An external electrical field causes the charges to rearrange, which cancels the field inside.


A Faraday cage is best understood as an approximation to an ideal hollow conductor. Externally or internally applied electromagnetic fields produce forces on the charge carriers (usually electrons) within the conductor; the charges are redistributed accordingly (that is, electric currents are generated). Once the charges have rearranged so as to cancel the applied field inside, the currents stop.


If a charge is placed inside an ungrounded Faraday cage, the internal face of the cage becomes charged (in the same manner described for an external charge) to prevent the existence of a field inside the body of the cage. However, this charging of the inner face re-distributes the charges in the body of the cage. This charges the outer face of the cage with a charge equal in sign and magnitude to the one placed inside the cage. Since the internal charge and the inner face cancel each other out, the spread of charges on the outer face is not affected by the position of the internal charge inside the cage. So for all intents and purposes, the cage generates the same DC electric field that it would generate if it were simply affected by the charge placed inside. The same is not true for electromagnetic waves.


If the cage is grounded, the excess charges will go to the ground instead of the outer face, so the inner face and the inner charge will cancel each other out and the rest of the cage will retain a neutral charge.


Effectiveness of shielding of a static electric field depends upon the geometry of the conductive material. In the case of a nonlinear varying electric field, and hence an accompanying varying magnetic field, the faster the variations are (i.e., the higher the frequencies), the better the material resists penetration, but on the other hand, the better it passes through a mesh of given size. In this case the shielding also depends on the electrical conductivity of the conductive materials used in the cages, as well as their thicknesses.



 See also


  1. ^ "Faraday, Michael - ninemsn Encarta". Archived from the original on 31 October 2009. http://www.webcitation.org/5kwc3quLs. Retrieved 20 November 2008.
  2. ^ J. D. Krauss, Electromagnetics, 4Ed, McGraw-Hill, 1992, ISBN 0-07-035621-1
  3. ^ http://physics.ucsd.edu/~tmurphy/phys8/lectures/14_microwave.ppt
  4. ^ Hamill, Sean (22 December 2008). "As Economy Dips, Arrests for Shoplifting Soar". The New York Times. http://www.nytimes.com/2008/12/23/us/23shoplift.html. Retrieved 12 August 2009.

[edit] External links

Retrieved from "http://en.wikipedia.org/w/index.php?title=Faraday_cage&oldid=540740309"

Re: EMP Resistance of Dome Homes

Aug 04, 2008

Metal cladding can make just about any structure proofed against EMP.For good resistance at a reasonable price' I'd suggest a layer of grounded stucco lathe in the outer chain shell layer.That would form a faraday cage and deflect the EMP in many directions,lessening it's effect considerably.

PREPARE FOR THE WORST,AND HOPE FOR THE BEST!! http://www.shtfm.com/pdf-downloads/topic13603.html

The Federal Energy Regulatory Commission is pushing Congress for authority to require power companies to take protective steps, which could include building metal shields around sensitive computer equipment.

An expert panel that Congress created to study such an attack says it would halt banking, transportation, food, water and emergency services and "might result in defeat of our military forces."

"The consequences would be catastrophic," said Joseph McClelland, director of the energy commission's Office of Electric Reliability.

"It would bring down the whole grid and cost between $1 trillion and $2 trillion" to repair, said Rep. Roscoe Bartlett, R-Md. Full recovery could take up to 10 years, he said.

The scenario involves a phenomenon called an "electromagnetic pulse," or EMP, which is essentially a huge energy wave strong enough to knock out systems that control electricity flow across the country.

A nuclear explosion 25 to 250 miles above the Earth's surface would be high enough that the blast wouldn't damage buildings or spread a lethal radioactive cloud. Even so, at that height, the pulse would fan out hundreds of miles.

The immediate effect would resemble a blackout. Although blackouts can be restored quickly, an EMP could damage or destroy power systems, leaving them inoperable for months or longer.




Some types of ferrocement buildings include a dense wire mesh or steel rebar matrix support, that may provide some shielding from EMP, if the steel matrix is grounded to earth. In fact, homes with plastered siding often contain a conductive wire lathe, which if integrated with a wire mesh over the ceiling -- and grounded to earth -- may also provide electromagnetic shielding from a radiative pulse. More

Electronic circuits -- integrated circuits such as will be incorporated into any "smart grid" -- are most vulnerable. Any modern automobiles with electronic ignition that are not shielded, will be vulnerable. Needless to say, any modern airplanes or airliners caught in the sky by an EMP would most likely be doomed.

The political leadership of the US is focused on symbolic reforms of the auto industry, the energy industry, health care, and other things community organisers might focus upon. The real and potentially serious problems of the US quasi-empire and international peacekeeper, are essentially ignored. Unfortunately, most other advanced nations are similarly plagued by blind and incompetent leadership.

Which means that it is up to you.



This ferrocement underground home is constructed of multiple adjoining domes, constructed on a hilltop. First a substantial quantity of earth is removed from the hilltop. The domes are shaped out of rebar, then covered with shotcrete. Then the earth is returned to the hill -- over the now-waterproofed domes, concealing most of the structure.



Building the dome infrastructure of rebar requires some ironworking skills, but allows for considerable creativity.





The reality of needing to protect all electronic equipment against EMP from a nuclear explosion over our shores is becoming imminent. We now live in perilous times. The world is a becoming dangerous place, with China now threatening Taiwan with annihilation from hundreds of neutron bombs. Russia is modernizing their military infrastructure with an emphasis on first strike capability, they have an stretegic alliance with China, and Putin is exporting "special nuclear materials" to Iran, Syria and Egypt. President Clinton renounced "launch on attack" in favor of absorbing a first strike without retaliation, while President Bush wants "first strike" authority to attack anywhere with nukes without warning, and it is easy to see that our enemies are virtually being invited to hit us with nukes! Iran has plans to do just that!


Nuke Over U. S. Could Unleash Electromagnetic (EMP) Tsunami


The information to follow on building "Faraday cages" is timely indeed. A single atmospheric nuclear detonation releases enough electromagnetic pulse (EMP) to equal 100,000 volts per meter (V/m). A single detonation 200 to 400 miles over the center of the continental United States would fry every unprotected computer chip from coast to coast, and from the middle of Canada to the middle of Mexico. And we are now into Solar Cycle 23, with solar flares common and expected to continue until the first of next year. CME's are capable of extreme damage to modern computerized equipment! Sure, we have our windup BayGen radio's and spare lap top computers, but unless electronic equipment is protected from an electromagnetic pulse, they will be fried!


The copper mesh, like 1 inch chicken wire, worked well in large uses, like covering buildings, and it is still in use today: FEMA headquarters buildings are dome-shaped earth-bermed structures, and under the earth is a copper mesh that extends out from the base and is secured by grounding rods.


As an Electro Magnetic Pulse (EMP) travels to earth, whether from a Coronal Mass Ejection (CME) or a nuclear detonation in the atmosphere, it hits and runs along electrical power lines as well, building up voltage and amperage, which is what happened during the last solar storm a dozen years ago, blowing out transformers and leaving 6 million people in eastern Canada without power for weeks.

To prevent that problem, if you have a hard-wired generator, the wiring from the generator to the house should run in conduit that is grounded. The generator itself can have the frame grounded for added insurance, but that ground wire MUST be insulated and run to a different ground rod well away from the ground rod for building and conduit! See the article on EMP and various grounding techniques for electrical appliances, plus grounding metal sheds for generators.


"Electric fields travel in straight lines, unless bent by other fields. Theoretically, the bottom of a cage doesn t need to be closed. If someone could offer me actual EMP test data that an open bottom is OK, I d consider believing it. However, if you re in an area of high ionization, the field could bend around. Complete enclosure is the best technical solution.


Here is the tiny Survival Radio and Faraday Cage in my Survival Shop. Steel tinned EMP box, hinged lid, 4 1/4" x 3 1/8" x 1". Holds the Survival radio nice and secure. With strong, thin cardboard inside to provide insulation, the radio is protected against dust, dirt, etc, and EMP!!! Stronger and easier to make than a cardboard box covered with tinfoil.


With radio's and smaller appliances, a Faraday cage can be built by using two cardboard boxes: one should fit tightly inside the other, and the item to be covered should itself fit reasonably well inside the smaller box. That is about the most work involved--finding the right size boxes! The outer box is then covered with aluminum foil or Mylar, as from a cheap "space blanket." A grounding wire is then taped to the foil. I then cover the foil with black 6 mil plastic, taped securely in place, to protect the foil from ripping. At the end of the ground wire I attach a cheap small alligator clip from Radio Shack. The item to be protected is placed inside the inner box, which acts as insulation from the outer box, and any EMP hitting the foil and is bled away by the ground wire.



Some medium sized electrical equipment can also easily fit into boxes covered with foil for EMP protection. My laptop computer, for example, fits easily into a Faraday box made from a box that held reams of paper: the entire lid is removable, allowing easy access to the laptop in its case, but is safely stored when not in use.


For larger items which cannot be boxed, such as living room TV sets, etc, I tape a Mylar space blanket to a piece of 6 mil black plastic sheet, using double-sticky tape every foot or so to make sure the Mylar stays in place (it is slippery). I leave a 2 inch edge of black plastic showing all around the space blanket, and while taping down the edges I put on a short lead of ground wire. When it appears that EMP or CME's are on the way, the blanket can be draped over the appliance, the alligator clip attached to a small, unobtrusive ground wire behind the cabinet, and any electromagnetic radiation will be diverted to the ground wire. Very cheap, simple, and once done, items can be "draped" for protection very quickly indeed. The "EMP Blankets" roll up for storage, but can be unrolled and thrown over a TV/VCR setup, a computer/monitor combo, etc. As EMP comes from altitude and is line of sight, it's OK that the bottom isn't covered, as the bottom of the units sit on non conductive wood.

The time to build Faraday cages or blankets is NOW, as when they are actually needed it will be far too late. Each box should be labeled on the ends and the top for the exact appliance they were built for, to eliminate any confusion when they must be protected in a hurry. Any electrical appliances not in use should be stored in the Faraday cage, where they will be kept clean, neat, in a known location, and protected against any sudden EMP surge.


NOTE: There are electrical engineers who say that only ferrous metal boxes will protect against EMP-enhanced weapons, while other sources say EMP is not a problem at all. I'll take the middle ground.



"Faraday cage material: Electric fields are best conducted by materials that conduct electric current the best silver is #1 and copper is #2. Aluminum is ~60% of copper. Iron/steel is farther down the scale. Aluminum is a good poor man s foil against EMP; double wrap it to be safe. I prefer copper foil." Ikstrums, Sept. 2, 2005








Back, left corner of metal shed is grounded with 1/4" ground wire to a ground rod. The wooden floor of the shed is non conductive.


A nuclear ground burst over 200 miles away should only result in 50,000 volts per square centimeter (sc) on your equipment, so the above Faraday cages should work. An air burst within 200 miles can result in up to 100,000 volts per sc, and that would require grounding of any Faraday cage to a separate ground rod well away from any house ground rods. An enhanced EMP weapon exploded at 200 miles elevation can yield over 120,000 volts per sc within up to 600 miles below the detonation point, and that would definitely require insulated metal boxes which are grounded. Remember, in the battle of warhead versus armor, the warhead usually wins, as the warhead can be made bigger. However, for those who build simple Faraday cages and live in an area not likely to receive a direct or close nuclear attack, the foil cages described should work. Those under a direct or close nuclear attack would probably not survive to use their electronic equipment in any case.


An atomic bomb exploded high over the center of the North American continent would damage delicate, unprotected electronic devices from the Atlantic to the Pacific, from the middle of Canada to the middle of Mexico. Iran is planning just such an attack. The word May 27, 2005 is that Iran is now equipped for an atomic weapon, news that reportedly stunned President Bush. The "possibility" has now turned into a "probability," not if, but when we get hit with a terrorist EMP bomb. It is for that reason that major US ports have, or soon will have, radiation detection equipment for scanning all inbound ships.

Iranian Nuke Attack on US Easy as EMP? Nov. 18, 2011

Nuke Over U. S. Could Unleash Electromagnetic (EMP) Tsunami

Military Source Warns of North Korea's EMP Bomb Sept. 7, 2009

Surviving EMP to depend on preparation

An EMP Attack, Thinking The Unthinkable

"Project STARFISH PRIME is probably the most famous test shot in EMP lore because it burned out street lights in Hawaii at a slant range of 800 miles, but it was a high altitude detonation (about 240 miles up). STARFISH was 1.4 Mt; a larger bomb at higher altitude would reach out farther.


Conversely, a surface burst also creates an EMP, but the pulse is very quickly attenuated. Depending on the size of the burst, the pulse could be gone in 10-30 miles, depending on the size of the yield. It’s not as much the pulse that’s being attenuated, but the ionizing radiation (which creates the pulse) that’s stopped fairly quickly in the lower atmosphere." Ikstrums, Sept. 2, 2005


A surprise EMP attack could well destroy all exposed electrical equipment, including generators, and leave the country in the dark for decades. The electrical infrastructure would fail, of course, but so would the banking system, virtually all transportation, the pumping of fuel, etc. In short, our country would be reduced to 1870's technology almost instantly. But individuals can prepare now, while there is still time.


"EMP effects go beyond damaging equipment. They also disrupt the ionosphere severely, which affects RF propagation of several radio bands for anywhere from one hour to over a day. Projects TEAK and ORANGE (high altitude, 3.8 Mt each) disrupted a Navy VLF comm link that was 3,000 miles away at the closest point to the blasts.

"But there’s also good news here. VHF and UHF transmissions are typically line-of-sight and not impacted by ionospheric disturbances, assuming the equipment survived the initial blast and pulse. Among other things, the 2 m and 70 cm amateur bands would be functional after a blast."
Ikstrums, Sept. 2, 2005


"The electromagnetic field pulses produced by weapons designed and deployed with the intent to produce EMP have a high likelihood of damaging electrical power systems, electronics and information systems upon which any reasonably advanced society, most specifically including our own, depend vitally," Wood said. "Their effects on systems and infrastructures dependent on electricity and electronics could be sufficiently ruinous as to qualify as catastrophic to the American nation." EMP Warning, June 20, 2005

An Iranian political-military journal, in an article entitled “Electronics To Determine Fate Of Future Wars,” suggests that the key to defeating the United States is EMP attack: “Advanced information technology equipment exists which has a very high degree of efficiency in warfare. Among these we can refer to communication and information gathering satellites, pilotless planes, and the digital system.... Once you confuse the enemy communication network you can also disrupt the work of the enemy command and decision-making center. Even worse, today when you disable a country’s military high command through disruption of communications you will, in effect, disrupt all the affairs of that country.... If the world’s industrial countries fail to devise effective ways to defend themselves against dangerous electronic assaults, then they will disintegrate within a few years.... American soldiers would not be able to find food to eat nor would they be able to fire a single shot.” (Tehran, Nashriyeh-e Siasi Nezami, December 1998 -January 1999) (Click here for the entire article.)

For more information on EMP, please see the following articles on this web site:

Building Faraday Cages; Iran plans to knock out U.S. with 1 nuclear bomb; America in the dark, Ex-CIA chief warns of EMP nuke threat, and Nations Planning an EMP Attack.

As most people depend upon city water that must be pumped through electric pumps, a gravity flow water system would be a decided advantage in long term survival. My booklet, "Rainwater Collection and Storage," gives precise information on how to collect and store water for your own family without attracting attention to yourself.

Even if you have taken the protective measures given below, the most likely timing of an EMP attack would be before noon on the West Coast, about 3:00 PM on the East Coast, to catch as many vehicles on the highway as possible - and while people are at work, far from their homes. The roads would be clogged with vehicles that no longer worked, families separated, and thus maximum disruption of the economy and fear instilled in the populace. Remember, an EMP attack would be a terrorist's dream, and causing maximum panic in the civilian population would factor highly into the timing of such an event. Therefore, wise people will have an evacuation plan already formulated!


So how do we protect our equipment? There is no definitive answer, as the results of testing for EMP has not been released to the general public. An EMP is both an electric field and a perpendicular magnetic field. The electric field is what does the damage and is measured in volts per meter (V/m). We can infer and extrapolate, but there are no guarantees, as an EMP pulse can only last 1/100th of a second but project 50,000 to 100,000 volts per meter (V/m). [Ikstrums, Sept. 2, 2005.]

There are two sorts of damage that can occur as a result of an EMP pulse. The first type of damage is that caused directly to exposed transistors, diodes, and circuit boards in radios, transmitters, ignition circuits in vehicles, solar panel controllers, etc. An EMP pulse travels in a straight line, so protection is needed from an EMP from the sides and the top except if the object to be protected is sitting on a conductive surface.


The second is through the accumulation of an overload of electricity on a long line, such as a power line.


Faraday cages can be built to totally enclose sensitive equipment not in use. This subject is covered in more detail at this link for Faraday cages. In general, the equipment is placed in a metal or foil covered box, insulated on the inside, and preferably grounded. Exposed radios and similar equipment are extremely difficult to protect, particularly if they are plugged into a 110 volt household electric circuit. In that case, spare equipment stored in Faraday cages would be most advantageous. If the Faraday cages are sitting on a conductive surface, they should be grounded. Grounding is safer in any case, though.

The second problem, long line accumulation of an EMP surge, requires isolation of equipment and proper grounding, so the EMP pulse has an easier path to earth than through the equipment. Ground rods should be driven down to wet earth, if at all possible, to provide a sufficient ground. That may mean an 8 foot ground rod, or even longer, depending upon your location.

All the photos below are "thumbnails." Click on the photo to enlarge it, then use the "back" button on your browser to come back to this page.

At left is an assortment of various types of ground clamps. The straps can be bolted around odd shaped or large pieced of metal. Click the picture to enlarge it. The clamp at the bottom right attaches to a water pipe.

The ground clamps in the photo above cost less than $3.00 each, and are available at almost any hardware store.

At left are simple ground wires for electrical equipment that must be plugged in, such as freezers. One end slides under the cover plate in an electrical outlet, and the other end has a screw which can be connected to a ground wire and thence to a ground rod. (See below)

The package of two ground screws above cost me $2.49 at a True Value Hardware store. True Value Hardware part #GCS12SM2.

At left is a 100 foot coil of steel guy wire. It can be cut to whatever length is needed with strong bolt cutters. Being flexible, it is easy to bend around corners. Steel is not as good as copper, but will work.

Here a ground screw is attached to a length of guy wire. A freezer or water pump can now be protected from an EMP surge.

There are no guarantees that a simple ground screw will completely protect an electric motor plugged into the socket to which the ground screw is attached. Grounding electric motors is hard! But it is a very inexpensive way to help make sure that any electrical surges find an easier path to ground than through an electric motor, and thus a well pump or freezer have a chance of surviving an EMP pulse.

At left is a common steel garden shed. At the back left corner I have grounded it using 1/4" ground wire: The insulated ground wire does not touch the base/floor of the shed so things inside are safe.

The shed has a wooden floor, which is nonconductive. An EMP pulse hitting the metal shed would be bled off to the ground wire, so items inside should be safe. If items inside a metal shed need to be grounded, the ground wire should be insulated and go to a separate ground rod to prevent feedback! Let me explain "feedback." If two ground wires are attached to the same ground rod, and only one wire, say the one from a metal shed, feeds an EMP pulse to the ground, that same electricity can flow back up (feedback) the ground wire to a grounded generator inside the shed, for example, as the ground wires are effectively joined by the ground rod. If two ground rods cannot be used, it is far better to ground the shed and not ground a generator or ATV on a nonconductive floor in the shed.


A vehicle can be grounded with a chain attached to a trailer hitch or the frame. This is not an ideal ground, but should work with the voltages produced by EMP providing the chain is laying on a wet, conductive surface. This is about the only method of vehicle grounding that is truly portable. If the vehicle is stored in a garage with a dry concrete floor, it would be better to use an alligator clip clamped to the frame or trailer hitch (see below), with the ground wire shown above. The other end of the ground wire should be attached to a ground rod or water pipe.

The illustration above is for grounding a vehicle that is not moving. How does one ground a moving vehicle? A dragging chain! The chain above has enough length to wrap around the front of the trailer hitch, just behind the rear axle and about 3 feet in front of the rear bumper, with about 4" of chain left to drag on the ground. It would be very hard for someone to see the dragging chain except on vehicles with lift kits. The chain simply drags along on the pavement, makes very little noise, and wears out relatively slowly. The frame and body of the vehicle are normally insulated from the ground by the rubber tires, but the dragging chain makes a good ground. I use a long enough chain so that I could make 3 loops around the front of the trailer hitch and still have 4" of chain dragging. When the chain wears down, I can remove the attachment clamp, unwrap one loop in the chain, and again have enough chain dragging to make a good ground. So, attach a ground chain and go on vacation without worrying about being stuck.


This small alligator clip can be attached to bare metal on a vehicle frame or trailer hitch, while the other end of the ground cable is clamped to a ground rod. The alligator clip from NAPA (part #BEL 726142) cost only $1.99, which is cheap enough protection for a vehicle. The same clip can be used to ground Faraday cages. This is an ideal setup for grounding a vehicle in a garage.

Older diesel engine vehicles are more reliable under EMP conditions because they lack the computerized fuel management and ignition systems of modern gasoline engine vehicles. However, that does not mean that an ungrounded diesel vehicle would still start! It would run, but getting current to the glow plugs might well mean the use of a small, easily made jumper cable. Note on the diagram below the controller, sensing resistor, dropping resistor, thermo switch, relays, etc, all between the battery and the glow plugs. All those susceptible components can be bypassed by using a jumper cable from the positive terminal on the battery to the glow plug buss


A jumper cable between the positive terminal on the battery and the glow plug buss (see arrow) will heat the glow plugs when the engine is cold. The hood is opened, the jumper cable attached, run back inside the vehicle and start the engine, then run back and yank off the jumper cable. Bingo, your diesel engine will start and run!


You will want to be pretty quick when using the jumper cable. Each glow plug draws about 12 amps, so a 4 cylinder engine is drawing almost 50 amps through that 10 gauge jumper wire. Once the engine is running, you will want to pull off the jumper cable as fast as you can. As long as the engine is warm, it will start without the use of the jumper cable and glow plugs. The radio and some other electrical devices would not work, but the vehicle would run!

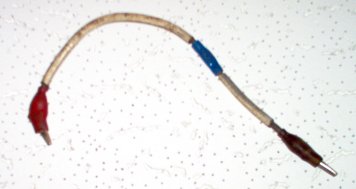

A jumper cable made using 10 gauge wire and small alligator clips on each end. I made this one in 1977 for a Diesel Rabbit.
